Joint Size & Shaft Selection

Guide to joint size & shaft selection

Given that the power & RPM that are imposed upon the shaft are known, then the torque transmitted will be:

T = HP×7119 or KW×9542 Nm
RPM   RPM

This torque has to be effected by consideration of joint bearing life required, operating angle & application conditions.

The graphs D, E & F for the 3 different joint designs are based on a B10 bearing life of 5,000 hours and joint angle of 3 degrees.

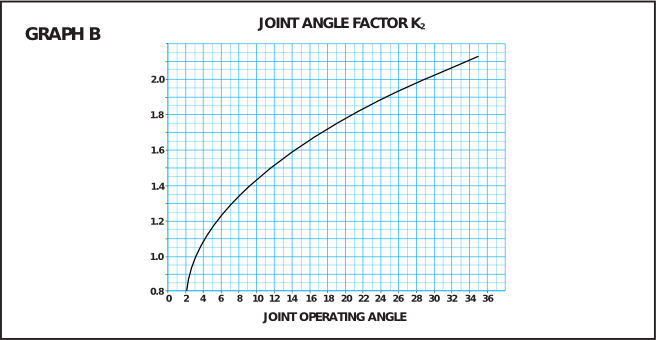

Graphs A & B give the appropriate factors for greater life and larger angle. A further factor should be included if there is direct connection of the shaft to prime movers as given in table C.

graph_a

graph_b

Effective Torque Te = T × K1 K2 × K3

TABLE C

PRIME MOVER K3
Electric Motor (4cyl. and more) 1,00
Gasoline engine (4cyl. and more) 1,25
Diesel engine (4cyl. and more) 1,30



Using Te & RPM as the co-ordinates on either of the following graphs D, E or F locate the application position in relation to the series lines. If this should be between two series lines, select the upper one.
